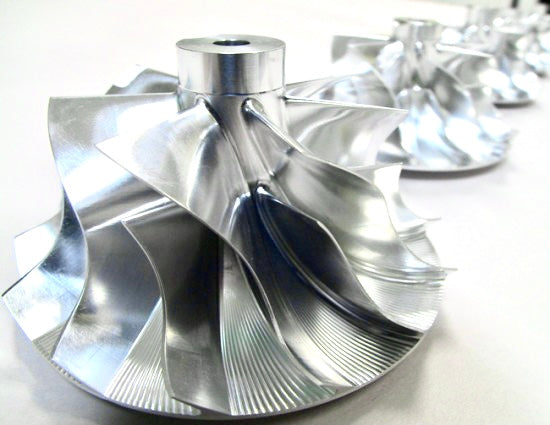

Specially designed for the Nissan Skyline GT 2860-5 turbo (Garrett Part no. 836026-5005)
Profile size is increased to allow for a change in the overall compressor trim. The small change allows for a significant improvement in performance of 250-300 rpm faster spool up due being approx 13 grams lighter and optimised impeller blade profile for increased airflow.
Power wise we have seen an extra 20-35hp* over a standard -5 turbo setup from customer feedback.
Compressor housing will require modification as well as full balance once fitted. Contact your local turbo rebuild specialist to carry out the install.
Supplied as a pair.
Technical Specifications:
Dimensions:
Inducer Diameter: 47.72mm
Exducer Diameter: 60.13mm
Tip Height: 4.44mm
Total Height: -
Weight:
Billet Alloy Wheel 39.5 grams
OEM Cast Wheel 52.7 grams
Profile:
Blades: 6/6
Trim/Superback: 2.30
Balanced: Yes
Type: Race Spec
*Based on customer feedback and testing, figures will vary depending on your overal engine setup and supporting modification
Made to order please allow 6-8 weeks approx.
